S100 Skid-Steer Loader

S100 Skid-Steer Loader

The S100 is our entry level skid steer that is easy to use in small spaces yet powerful and versatile enough to help out on those larger jobs. This durable package couples to a wide variety of Bobcat® handling attachments, allowing you to tackle any job. It also brings you large-machine safety and security from it's mid-sized operator cab.

S100 Specifications

Compare

Key Specifications

Tipping load
915 kg
Engine power
18.2 kW
Operating weight
1860 kg
Lift height
2.6 m
ROC
457 kg

Key Specifications

Tipping load
915 kg
Engine power
18.2 kW
Operating weight
1860 kg
Lift height
2.6 m
ROC
457 kg

Performance

Tipping load (ISO 14397-1)
915.00 kg
Rated operating capacity (ISO 14397-1)
457.00 kg
Pump capacity
36.00 L/min
Push Force
1275.00 daN
System relief at quick couplers
20.7 MPa
Max. travel 2-speed (SJC controls)
13.40 km/h
Max. travel 1 speed (manual controls)
8.20 km/h

Engine

Make / Model
Kubota / V1505-T4F-ST5
Cooling
Liquid
Maximum power at 2300 RPM (ISO 14396)
18.20 kW
Torque at 1600 RPM (ISO 9249) Gross
86.40 Nm
Number of cylinders
4
Displacement
1498.00 cm3
Fuel tank
45.00 L
Fuel consumption
4.4 l/h (Estimated fuel consumption is based on testing by Bobcat Company in mid duty-cycle digging applications.)

Weights

Operating weight (with HD tyres, 50 inch C/I bucket)
1860.00 kg
Shipping weight (with HD tyres, without bucket)
1693.00 kg
Operating weight (with SOLID tyres, 50 inch C/I bucket)
2149.00 kg
Shipping weight (with SOLID tyres, without bucket)
2074.00 kg

Dimensions

Operating height
3306.00 mm
Height with operator cab
1878.00 mm
Angle of departure
25.00 °
Ground clearance
167.00 mm
Wheelbase
818.00 mm
Length without attachment
2262.00 mm
Length with standard bucket
2800.00 mm
Rollback at ground position
26.00 °
Dump height with standard bucket
2084.00 mm
Height to bucket hinge pin
2633.00 mm
Dump reach at maximum height
412.00 mm
Dump angle at maximum height
43.00 °
Rollback fully raised at maximum height
95.00 °
Width over standard bucket
1270.00 mm
Turning radius with standard bucket
1731.00 mm
Track, standard tyres
967.00 mm
Width over standard tyres
1167.00 mm

Controls

Vehicle steering
Direction and speed controlled by two hand levers
Loader hydraulics tilt and lift
Separate foot pedals
Front auxiliary (standard)
Lateral movement of right-hand steering lever

Drive System

Transmission
Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors

Standard Features

Bobcat Interlock Control System (BICS)
yes
Hand and Foot Controls
yes
Operator cab Deluxe
yes
Standard Seat
yes
Seat belt
yes
Seat bar
yes
Bob-Tach™ frame
yes
27 x 8.50-15, 6–ply, Bobcat heavy duty tyres
yes
Auxiliary hydraulics: variable flow/maximum flow
yes
Operating lights, front and rear
yes
Lift arm support
yes
Parking brake
yes
Spark arrestor muffler
yes
Engine/hydraulics system shutdown
yes
Automatically activated glow plugs
yes
Manual
yes
Warranty: 24 months or 2000 hours (whichever occurs first)
yes

Options

Selectable Joystick Controls (SJC)
yes
Two speed with 3-point belt
yes
Deluxe pressurized cab with heating
yes
Cloth Suspension Seat
yes
Vinyl Suspension Seat
yes
Keyless start with password capability
yes
Power Bob-Tach™
yes
Hydraulic bucket positioning (including ON/OFF switch)
yes
Back-up alarm
yes
28x9-15 Hard Duty Solid Tyres
yes
Road kit
yes
Beacon
yes
Cab enclosure kit
yes
Lexan rear window kit
yes
Counterweights
yes
Side windows kit
yes
Top window kit Lexan
yes
Front door kit
yes
Lexan door kit
yes
Special applications front door kit
yes
Counterweight kit
yes
Single-point lift kit
yes
Hydraulic bucket positioning kit
yes
Power Bob-Tach™ kit
yes
Back up alarm kit
yes
Fire extinguisher kit
yes
Fresh air heater kit
yes
Plumbing kit for fresh air heater
yes
Rear window wiper kit
yes
Warning lights: rotating beacon, strobe light
yes
Seat belt kit
yes
Third gas spring kit (for heated cab)
yes
Additional gas spring kit (for tipping the cab)
yes
Tailgate lock kit
yes
Fuel cap locking kit
yes
FOPS kit
yes

Attachments

Auger Accessories
yes
Augers
yes
Bale Forks
yes
Breaker Accessories
yes
Breakers
yes
Brush Saws
yes
Brushcat™ Rotary Cutters
yes
Combination Buckets
yes
Construction / Industrial Buckets
yes
Dumping Hoppers
yes
Grapples, Industrial
yes
Landplanes
yes
Low Profile Buckets
yes
Miscellaneous
yes
Mowers
yes
Pallet Fork Accessories
yes
Planer Accessories
yes
Rear Stabilizers
yes
Remote Control
yes
Root Grapples
yes
Scrapers
yes
Skeleton Buckets
yes
Snow Blades
yes
Soil Conditioners
yes
Sweepers
yes
Tillers
yes
Utility Forks
yes
Utility Frames
yes

Environmental

Noise level LpA(EU Directive 2006/42/EC)
86.00 dB(A)
Operator LpA uncertainty
2.00 dB(A)
Noise level LWA(EU Directive 2000/14/EC)
96.00 dB(A)

S100 Features

Popular Attachments

View All
  • Angle Broom Angle Broom

    Angle Broom

    Dirt, dried mud, light snow and other debris are quickly and efficiently swept away with this hydraulically driven attachment.
  • Auger Auger

    Auger

    Speed and perfect vertical accuracy are what you get with this high-torque, heavy-duty hydraulic auger.
  • Bale Fork Bale Fork

    Bale Fork

    The pair of small diameter forks offer benefits over a single fork.
  • Breaker Breaker

    Breaker

    Bobcat breakers offer high performance, low maintenance, and are easy to use.
  • Brush Saw Brush Saw

    Brush Saw

    The Bobcat. brush saw attachment is a quick, convenient way to remove unwanted brush.
  • Bucket (CI), Construction / Industrial Bucket (CI), Construction / Industrial

    Bucket (CI), Construction / Industrial

    The strongest of all Bobcat buckets. Ideal for everything from tough digging to material handling.
  • Bucket (GP), General Purpose Bucket (GP), General Purpose

    Bucket (GP), General Purpose

    General purpose buckets have a longer bottom than the dirt style. They offer excellent cutting edge visibility and good breakout force.
  • Bucket (LP), Low Profile Bucket (LP), Low Profile

    Bucket (LP), Low Profile

    These buckets have a longer bottom than the construction/industrial style. They offer excellent cutting edge visibility and good bucket breakout force
  • Bucket, Dirt Bucket, Dirt

    Bucket, Dirt

    Ideal for everything from digging to material handling.
  • Bucket, Skeleton Bucket, Skeleton

    Bucket, Skeleton

    Excellent for separating unwanted objects, such as rocks and other debris, from work areas while leaving finer material behind.
  • Dumping Hopper Dumping Hopper

    Dumping Hopper

    Park it, load it and dump it. This attachment mounts as easily as a bucket on your loader, and can go wherever your loader goes.
  • Grade Lasers Grade Lasers

    Grade Lasers

    Bobcat's Grade Laser is a highly precise and dependable system for leveling, grading or jobs that require vertical alignment.
  • Grapple, Farm – Utility On Bucket Grapple, Farm – Utility On Bucket

    Grapple, Farm – Utility On Bucket

    Built for reliability, the industrial bucket and fork with grapple easily handles scrap, waste and other hard-to-manage materials.
  • Grapple, Farm – Utility On Fork Grapple, Farm – Utility On Fork

    Grapple, Farm – Utility On Fork

    This is the easy way to handle loose hay, bedding and manure on the farm and other sites.
  • Grapple, Industrial Grapple, Industrial

    Grapple, Industrial

    Built tough for reliability and endurance to easily handle scrap, waste, brush and other hard-to-manage materials.
  • Grapple, Root Grapple, Root

    Grapple, Root

    Built tough for reliability and endurance, the root grapple easily handle scrap, waste, brush and other hard-to-manage materials.
  • Landplane Landplane

    Landplane

    A landscaping must. It grades and levels in both forward and reverse and peels and removes sod.
  • Laser Equipment Laser Equipment

    Laser Equipment

    The laser equipment offers the most innovative features to help you get to grade faster with increased accuracy.
  • Mower Mower

    Mower

    Ideal for rough-cut applications, including road ditch right-of-way, golf course roughs and large acreage mowing.
  • Pallet Forks Pallet Forks

    Pallet Forks

    Perfect for handling pallets, even in tight spaces and hard-to-reach areas like narrow aisles.
  • Pressure Washer 20220325-pressure-washer

    Pressure Washer

    Excels at cleaning or sanitizing streets, removing graffiti and even at railroad, bridge or tunnel maintenance.
  • Remote Control Remote Control

    Remote Control

    Control your Bobcat loader without the need to be in the cab.
  • Scraper Scraper

    Scraper

    Use to remove stubborn, packed-on mud, snow and ice from driveways, sidewalks, parking lots, bike paths, wherever build-up occurs.
  • Snow Blade Snow Blade

    Snow Blade

    An excellent way to quickly remove light or moderate snow from sidewalks and driveways.
  • Snow Blower

    Snow Blower

    Extend your Bobcat® loader work into winter with a hydraulically driven snowblower.
  • Soil Conditioner Soil Conditioner

    Soil Conditioner

    A versatile, cost-effective landscaping attachment.
  • Sweeper Sweeper

    Sweeper

    The Bobcat sweeper can sweep and collect dirt or other debris in both forward and reverse.
  • Tiller Tiller

    Tiller

    A great landscaping attachment.It quickly breaks up ground and mixes compost and other materials into the soil.
  • Utility Fork Utility Fork

    Utility Fork

    Handle materials easier and move materials faster with the utility fork attachment.
  • Utility Frame Utility Frame

    Utility Frame

    Weld this accessory to non Bobcat® attachments to convert to Bob-TachTM mount.

Similar Machines

  • S100 Skid-Steer Loader Bobcat S100 Skid-Steer Loader

    S100 Skid-Steer Loader

    With the Bobcat S100 in your corner, you have a "tiny but mighty" solution for all of your industrial and daily needs.

    Tipping load
    915 kg
    Engine power
    18.2 kW
    Operating weight
    1860 kg

  • S450 Skid-Steer Loader Bobcat S450 Skid-Steer Loader

    S450 Skid-Steer Loader

    This Bobcat® S450 is our most versatile skid-steer loader - the perfect machine for all your loading, carrying and cleaning jobs.

    Tipping load
    1215 kg
    Engine power
    35.9 kW
    Operating weight
    2365 kg

  • S510 Skid-Steer Loader Bobcat S510 Skid-Steer Loader

    S510 Skid-Steer Loader

    If you're looking for an earth-mover that provides tremendous power and tons of comfort, check out the Bobcat S510.

    Tipping load
    1619 kg
    Engine power
    34.4 kW
    Operating weight
    2686 kg

  • S530 Skid-Steer Loader Bobcat S530 Skid-Steer Loader

    S530 Skid-Steer Loader

    It might be small, but the popular Bobcat S530 uses new high flow hydraulics to ensure no task is out of reach.

    Tipping load
    1737 kg
    Engine power
    34.4 kW
    Operating weight
    2815 kg

  • S550 Skid-Steer Loader Bobcat S550 Skid-Steer Loader

    S550 Skid-Steer Loader

    The Bobcat S550 is the perfect skid-steer loader for dumping over walls, backfilling or loaded flatbeds with ease and style.

    Tipping load
    1788 kg
    Engine power
    45.5 kW
    Operating weight
    2841 kg

  • S590 Skid-Steer Loader Bobcat S590 Skid-Steer Loader

    S590 Skid-Steer Loader

    With the Bobcat S590 skid-steer vertical-lift loader, you can reach the highest heights with more power than ever before.

    Tipping load
    1995 kg
    Engine power
    49.2 kW
    Operating weight
    3054 kg

  • S630 Skid-Steer Loader Bobcat S630 Skid-Steer Loader

    S630 Skid-Steer Loader

    The Bobcat® S630 gives you high loader and attachment performance in a medium-sized package.

    Tipping load
    2079 kg
    Engine power
    54.6 kW
    Operating weight
    3496 kg

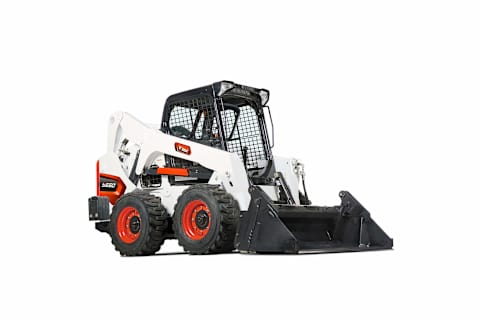

  • S650 Skid-Steer Loader Bobcat S650 Skid-Steer Loader

    S650 Skid-Steer Loader

    The S650 loader has a vertical lift path and offers greater lifting capacity and forward reach at full lift-height, for truck loading and pallet handl

    Tipping load
    2564 kg
    Engine power
    54.6 kW
    Operating weight
    3777 kg

  • S70 Skid-Steer Loader Bobcat S70 Skid-Steer Loader

    S70 Skid-Steer Loader

    No matter how small or tight of a spot you're in, the Bobcat S70 is the perfect small option to complete the job.

    Tipping load
    686 kg
    Engine power
    17.5 kW
    Operating weight
    1268 kg

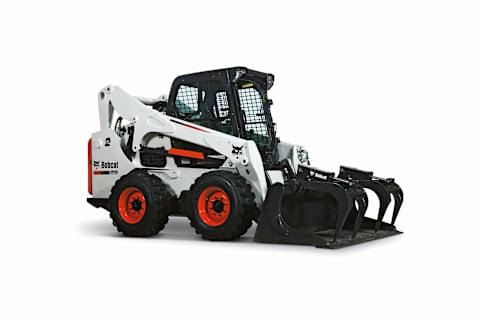

  • S770 Skid-Steer Loader Bobcat S770 Skid-Steer Loader
