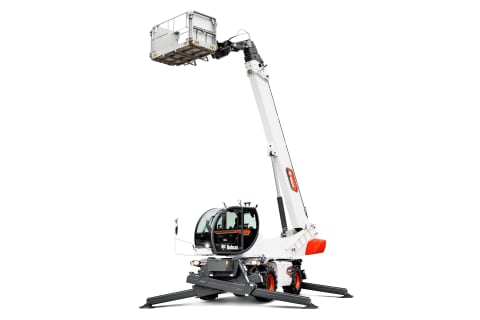

TR60.260 Rotary Telehandler

TR60.260 Rotary Telehandler

Enhance productivity with the TR60.260 Rotary Telehandler. The advanced hydraulic system guarantees swift, accurate, and effective operations, resulting in reduced fuel consumption for both cost efficiency and extended autonomy. Easily monitor load charts with the touchscreen display and load indicators to maximize operator safety.

Specifications

Compare

Key Specifications

Rated Capacity
6000 kg
Lifting height
20.8 m
Rated power (ISO 14396)
100 kW
Max reach
22.2 m
Unladen weight
17600 kg

Key Specifications

Rated Capacity
6000 kg
Lifting height
20.8 m
Rated power (ISO 14396)
100 kW
Max reach
22.2 m
Unladen weight
17600 kg

Performance

Rated capacity
6,000 kg @ 600 mm Load Center
Max. lifting height (stabilisers fully extended)
25.80 m
Capacity at max. height (stabilisers fully extended)
3500.00 kg
Turret Rotation
360.00
Max. speed
40.00 km/h

Stabilisers

Type
Scissor stabilisers with single telescopic extension
Stabilization system
Ground pressure detection. Automatic levelling. Lifting capacity adjusted in proportion to stabiliser extension

Weights

Weight (unladen)
19600.00 kg

Engine

Make / Model
Deutz TCD 3,6 L4 EDG
Compliancy
Stage IIIA
Rated power (ISO 14396)
100 kW (136 hp) @ 2,200 rpm
Maximum torque
500 Nm @ 1,600 rpm
Number of cylinders
4.0
Displacement
3.60 L

Hydraulic System

Pump type
Load Sensing pump
Pump capacity
130.00 L/min
Relief valve pressure setting
350.00 bar
Control valve (boom and turret)
SIL 2 electro-proportional valve

Drive System

Transmission
Hydrostatic with electronic regulation / 4 wheel drive
Main drive
Electronically controlled variable displacement pump. Variable displacement motor. 2-speed gear box

Traction

Standard tyres
445/65 R22,5
Towing force
68.00 kN
Gradeability
34.00 %

Axles and brakes

Axle type
Axles with planetary gearboxes
Rear axle
Oscillating and steering with hydraulic locking
Front axle
Oscillating, steering with levelling +/-8°
Service brake
Hydraulically operated wet multi-disk brakes on each axle
Parking brake
Hydraulic with negative action

Steering

Steering modes
3 steering modes with semi-automatic wheel realignment. 2 wheel steering / 4 wheel steering / Crab-steer
External turning radius (with forks)
3.98 m

Fluid Capacities

Fuel tank
240.00 L
Hydraulic reservoir
130.00 L
Engine oil
9.00 L
Coolant
20.00 L

Environmental

Operator noise level (LpA) (En 12053)
72.00 dB(A)
Level of acoustic power (LWA)
106.00 dB(A)
Whole body vibration (ISO 2631-1):
0.49 ms2
Hand-arm vibration (ISO 5349–1)
0.57 ms2

Standards

Standard compliance
EN 1459-2: concerning standards for slewing variable-reach trucks EN 280 / EN 280-1: concerning standards for mobile elevating work platforms FOPS Level 2 / ROPS EU 2016/1628: concerning engine emissions standards
