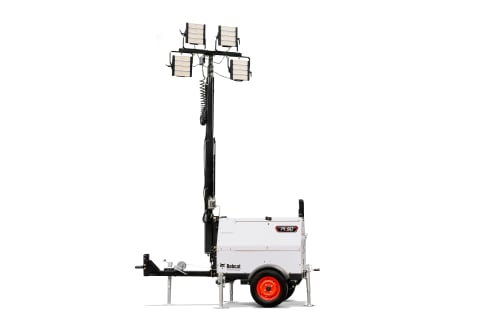

PL50 Light Tower
Bobcat's PL50 Light Tower provides efficient lighting and power with improved mobility, all at a fraction of the cost.
- Home
- Equipment
- Lighting Systems
- PL40 Light Tower
PL40 Light Tower
PL40 Light Tower
Bobcat's PL40 light tower is powered by a reliable Yanmar engine, delivering 200+ hours of runtime with remarkably low fuel consumption. The system comes with energy-efficient LED technology for an extended lifespan and minimal power requirements, while its compact design guarantees hassle-free shipping.
Features
PL40 – 1200 W
1
Features
- 210 hours of continuous running.
- Conform to IEC 60204-1.
- Sheet metal is 3-layer coated to operate in extreme conditions.
- Industry's best lumens per watt.
- Mast and LEDs can be rotated at 360 degrees respectively.
- 40 km/hr towing speed, can be towed with different vehicles.
- Structure designed to withstand wind speed of 105 km/hr.
- Mast can be raised and lowered within 60 sec.
- Light, compact and ease of shifting at sites.
- Standard power out of 5 amps.
- Safety features for ease of operation.
PL40 – 800 W
1
Features
- 226 hours of continuous running.
- Conform to IEC 60204-1.
- Sheet metal is 3-layer coated to operate in extreme conditions.
- Industry's best lumens per watt.
- Mast and LEDs can be rotated at 360 degrees respectively.
- 40 km/hr towing speed, can be towed with different vehicles.
- Structure designed to withstand wind speed of 105 km/hr.
- Mast can be raised and lowered within 60 sec.
- Light, compact and ease of shifting at sites.
- Standard power out of 5 amps.
- Safety features for ease of operation.
Specifications
Compare
Key Specifications
PL40 – 800 W
PL40 – 1200 W
Continuous Running Hours
226 hrs
210 hrs
Working Speed
3000 rpm
3000 rpm
Engine
Yanmar - L48V5
Yanmar - L48V5
Light Source
LED
LED
Engine
PL40 – 800 W
PL40 – 1200 W
Make
Yanmar
Yanmar
Model
L48V5
L48V5
Power Rating
3.7 (2.76) hp (kW)
3.7 (2.76) hp (kW)
Number of Cylinders
1
1
Working Speed
3000 rpm
3000 rpm
Cooling System
Air Cooled
Air Cooled
Fuel tank capacity
31 (118) US gal (L)
31 (118) US gal (L)
Total wattage
800 W
1200 W
Continuous Running Hours
226
210
Alternator
PL40 – 800 W
PL40 – 1200 W
Rating
2,2 kVA
2,2 kVA
Voltage
230 V
230 V
Frequency
50 Hz
50 Hz
Electrical System
PL40 – 800 W
PL40 – 1200 W
Battery Rating
12V 45Ah
12V 45Ah
Dimensions With Running Gear
PL40 – 800 W
PL40 – 1200 W
Length
2910 (114.5) mm (in)
2910 (114.5) mm (in)
Width
1445 (56.8) mm (in)
1445 (56.8) mm (in)
Height
2696 (106) mm (in)
2696 (106) mm (in)
Shipping Weight
506 (1116) kg (lbs)
518 (1142) kg (lbs)
PL50 – LEK1.4
Compare
PL50 – LSCK4
Compare
Key Specifications
PL40 – 800 W
PL40 – 1200 W
Continuous Running Hours
226 hrs
210 hrs
Working Speed
3000 rpm
3000 rpm
Engine
Yanmar - L48V5
Yanmar - L48V5
Light Source
LED
LED
Engine
PL40 – 800 W
PL40 – 1200 W
Make
Yanmar
Yanmar
Model
L48V5
L48V5
Power Rating
3.7 (2.76) hp (kW)
3.7 (2.76) hp (kW)
Number of Cylinders
1
1
Working Speed
3000 rpm
3000 rpm
Cooling System
Air Cooled
Air Cooled
Fuel tank capacity
31 (118) US gal (L)
31 (118) US gal (L)
Total wattage
800 W
1200 W
Continuous Running Hours
226
210
Alternator
PL40 – 800 W
PL40 – 1200 W
Rating
2,2 kVA
2,2 kVA
Voltage
230 V
230 V
Frequency
50 Hz
50 Hz
Electrical System
PL40 – 800 W
PL40 – 1200 W
Battery Rating
12V 45Ah
12V 45Ah
Dimensions With Running Gear
PL40 – 800 W
PL40 – 1200 W
Length
2910 (114.5) mm (in)
2910 (114.5) mm (in)
Width
1445 (56.8) mm (in)
1445 (56.8) mm (in)
Height
2696 (106) mm (in)
2696 (106) mm (in)
Shipping Weight
506 (1116) kg (lbs)
518 (1142) kg (lbs)
