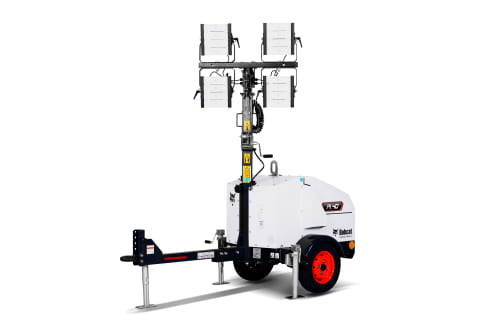

PL40 Light Tower
Illuminate your workspace for 200+ hours with the brilliance of the PL40 LED Light Tower.
- Home
- Equipment
- Lighting Systems
- PL50 Light Tower
PL50 Light Tower
PL50 Light Tower
The Bobcat PL50 light tower combines an efficient engine and a high-output alternator, delivering both lighting and power with an industry-leading runtime. Its compact design boosts jobsite mobility and reduces transportation expenses.
Features
PL50 – LSCK4
1
Features
- 9 meter mast with 3 sections.
- Designed to operate in dusty environments.
- The structure is designed to withstand wind speed up to 105 km/hr.
- Luminaries and electrical parts conform to NEMA-7 standards.
- 360-degree rotatable mast.
- 4X1000 watts metal halide lamps can cover 7.5 acres.
- Raising and lowering the mast in 90 seconds.
- Sheet metal with 3-layer coating for long-lasting.
- Brushless maintenance free alternator.
- Copiously sized fuel tank to ensure long running hours.
- Plastic fuel tank ensures no corrosion and leakage or wastage of fuel.
- Towing speed of 40km/hr with tubeless tyres.
PL50 – LEK1.4
1
Features
- 9 meter mast with 3 sections.
- Rugged enclosure with 3-layer coating provides long-lasting solution.
- A structure can withstand wind speeds of up to 105 km/hr.
- 360° rotatable mast, luminaries designed as per NEMA-7 standards.
- Easy manoeuvrability with forklift, crane, excavator or any towing vehicle.
- Simple self-locking winches for raising or lowering of mast.
- Mast can be raised and lowered in 90 sec.
- Higher ground clearance with R12 tyres.
- Towing speed of 40 km/hr.
- Plastic fuel tank provides 116 hours of continuous operation.
- Brushless maintenance free alternator.
- Heating for winter operations provides as standard feature.
- Curly cord raises and retracts.
Specifications
Compare
Key Specifications
PL50 – LEK1.4
PL50 – LSCK4
Continuous Running Hours
116 hrs
65 hrs
Working Speed
1500 rpm
1500 rpm
Engine
Kubota - D1105
Kubota - D1105
Light Source
LED
Metal Halide
Engine
PL50 – LEK1.4
PL50 – LSCK4
Make
Kubota
Kubota
Model
D1105
D1105
Power Rating
11.3 (8.4) hp (kW)
11.3 (8.4) hp (kW)
Number of Cylinders
3
3
Working Speed
1500 rpm
1500 rpm
Cooling System
Liquid
Liquid
Fuel tank capacity
27.4 (104) US gal (L)
27.4 (104) US gal (L)
Total wattage
1200 W
4000 W
Continuous Running Hours - hrs
116
65
Alternator
PL50 – LEK1.4
PL50 – LSCK4
Rating
5 kVA
5 kVA
Voltage
230 V
230 V
Frequency
50 Hz
50 Hz
Electrical System
PL50 – LEK1.4
PL50 – LSCK4
Battery Rating
12V 85Ah
12V 85Ah
Dimensions With Running Gear
PL50 – LEK1.4
PL50 – LSCK4
Length
4300 (169.2) mm (in)
4430 (171) mm (in)
Width
1260 (49.6) mm (in)
1440 (56.6) mm (in)
Height
1690 (66.5) mm (in)
1730 (68.1) mm (in)
Shipping Weight
695 (1532) kg (lbs)
703 (1550) kg (lbs)
