TL35.70 Construction Telehandler
TL35.70 Construction Telehandler
The Bobcat R-Series TL35.70 Telehandler offers a 7-meter boom with outstanding stability for all your construction needs. Handle daily tasks with a familiar, intuitive automotive-style layout and an all-in-one joystick with improved ergonomics.
TL35.70 Overview
TL35.70 components are well protected thanks to the shielded design, while the robust frame and boom make Bobcat Telehandlers extra tough. The smooth and automatic transmission offers surgical precision and maximum uptime with a standard 3-year warranty (or 3000 hours) on the entire machine for peace of mind.
TL35.70 Specifications
Compare
Key Specification
TL35.70 Construction Telehandler
Rated Capacity
3500 kg
Lifting height
6.9 m
Rated power (ISO 14396)
74 kW
Tilt breakout force
6200 daN
Unladen weight
6880 kg
Dimensions
TL35.70 Construction Telehandler
Overall length (to forks tip)
6074.00 mm
Overall length (to forks face)
4869.00 mm
Overall length (to headstock pin)
4763.00 mm
Overall length (to front tyres / Stabilizers (when equipped)
4058.00 mm
Overall length (to front tyres 24" / Stabilizers (when equipped)
4145.00 mm
Overall height (with rotating beacon)
2503.00 mm
Overall height with 24" tyres (with rotating beacon)
2587.00 mm
Overall height (with roof wiper)
2373.00 mm
Overall height with 24" tyres (with roof wiper)
2457.00 mm
Height back of the machine
1668.00 mm
Height back of the machine with 24" tyres
1752.00 mm
Ground clearance
346.00 mm
Ground clearance with 24" tyres
430.00 mm
Length - Front axle to forks face
1356.00 mm
Wheelbase
2870.00 mm
Length - Rear axle to machine rear
643.00 mm
Operator cab outside width
1013.00 mm
Track width
1895.00 mm
Width over standard tyres
2300.00 mm
External turning radius (at tyres)
3714.00 mm
External turning radius with 24" tyres (at tyres)
3714.00 mm
Internal turning radius (cab)
1092.00 mm
Internal turning radius with 24" tyres (cab)
1092.00 mm
External turning radius (with forks spaced 1040 mm ext.)
4925.00 mm
External turning radius with 24" tyres (with forks spaced 1040 mm ext.)
4925.00 mm
Carriage rotation angle
135.00 °
Performance
TL35.70 Construction Telehandler
Rated capacity
3500.00 kg
Capacity (at max. height on tyres)
3500.00 kg
Capacity at max. reach
1500.00 kg
Lifting height
6889.00 mm
Tilt Breakout force
6200.00 daN
Drawbar pull (20" tyres)
8000.00 daN
Drawbar pull (24" tyres)
7000.00 daN
Max. gradeability (20" tyres)
33.00 °
Max. gradeability (24" tyres)
33.00 °
Max. reach
4002.00 mm
Cycle times
TL35.70 Construction Telehandler
Boom raising
8.00 s
Boom lowering
6.00 s
Boom extension
7.10 s
Boom retraction
6.50 s
Crowding
3.00 s
Dumping
2.70 s
Weights
TL35.70 Construction Telehandler
Unladen weight (20" tyres)
6880.00 kg
Unladen weight (24" tyres)
7020.00 kg
Engine
TL35.70 Construction Telehandler
Make / Model
PERKINS / 1104D-44TA
Fuel
DIESEL
Rated power (ISO 14396)
74.00 kW
Rated speed
2200.00 RPM
Maximum torque at 1400 rpm
410.00 Nm
Number of cylinders
4.0
Displacement
4.40 L
Hydraulic system
TL35.70 Construction Telehandler
Pump type
Gear pump with LS valve
Pump capacity
100.00 L/min
Relief valve pressure setting
255.00 bar
Control valve type
Open center with flow sharing & flow compensators technology
Drive system
TL35.70 Construction Telehandler
Transmission
Hydrostatic with electronic regulation
Main Drive
Hydrostatic motor + 2 speed gearbox
Traction
TL35.70 Construction Telehandler
Standard Tyres
405/70-20 16PR TM R4
Low range - turtle mode (24" / 20")
6 / 5
Low range - rabbit mode (24" / 20")
11 / 10
High range - turtle mode (24" / 20")
16 / 14
High range - rabbit mode (24" / 20")
30 / 26
Low range - turtle mode (24" / 20") - (Option high speed)
6 / 5
Low range - rabbit mode (24" / 20") - (Option high speed)
12 / 10
High range - turtle mode (24" / 20") - (Option high speed)
18 / 16
High range - rabbit mode (24" / 20") - (Option high speed)
40 / 35
Brakes
TL35.70 Construction Telehandler
Engine Braking
Hydrostatic
Parking and Emergency brake
Passive brake
Service Brake
Oil immersed discs
Steering
TL35.70 Construction Telehandler
Steering Mode
2 wheel steering / 4 wheel steering / Crab-steering
Fluid Capacities
TL35.70 Construction Telehandler
Fuel tank
138.00 L
Hydraulic tank
59.00 L
Hydraulic system
105.00 L
Environmental
TL35.70 Construction Telehandler
Operator noise level (LpA) (EN 12053)
76.00 dB(A)
Whole body vibration (EN 13059)
1.50 ms2
TL35.70 Construction Telehandler
TL30.70 Construction Telehandler
Compare
TL30.60 Construction Telehandler
Compare

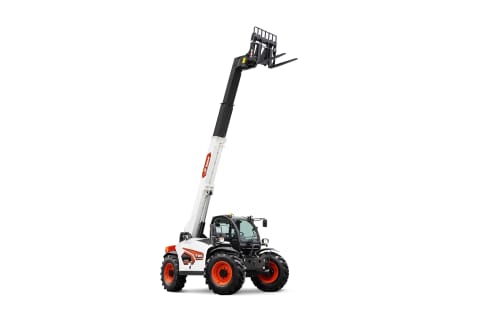

T35.105L Construction Telehandler
Compare
T36.120SL Construction Telehandler
Compare
T40.180SLP Construction Telehandler
Compare

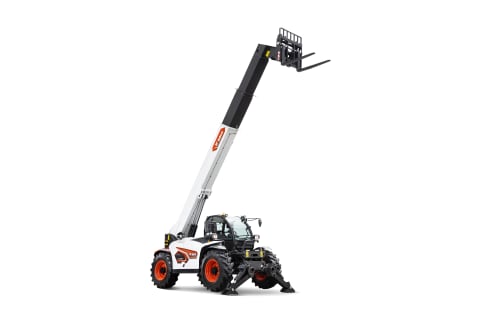

T41.140SLP Construction Telehandler
Compare
Key Specification
TL35.70 Construction Telehandler
Rated Capacity
3500 kg
Lifting height
6.9 m
Rated power (ISO 14396)
74 kW
Tilt breakout force
6200 daN
Unladen weight
6880 kg
Dimensions
TL35.70 Construction Telehandler
Overall length (to forks tip)
6074.00 mm
Overall length (to forks face)
4869.00 mm
Overall length (to headstock pin)
4763.00 mm
Overall length (to front tyres / Stabilizers (when equipped)
4058.00 mm
Overall length (to front tyres 24" / Stabilizers (when equipped)
4145.00 mm
Overall height (with rotating beacon)
2503.00 mm
Overall height with 24" tyres (with rotating beacon)
2587.00 mm
Overall height (with roof wiper)
2373.00 mm
Overall height with 24" tyres (with roof wiper)
2457.00 mm
Height back of the machine
1668.00 mm
Height back of the machine with 24" tyres
1752.00 mm
Ground clearance
346.00 mm
Ground clearance with 24" tyres
430.00 mm
Length - Front axle to forks face
1356.00 mm
Wheelbase
2870.00 mm
Length - Rear axle to machine rear
643.00 mm
Operator cab outside width
1013.00 mm
Track width
1895.00 mm
Width over standard tyres
2300.00 mm
External turning radius (at tyres)
3714.00 mm
External turning radius with 24" tyres (at tyres)
3714.00 mm
Internal turning radius (cab)
1092.00 mm
Internal turning radius with 24" tyres (cab)
1092.00 mm
External turning radius (with forks spaced 1040 mm ext.)
4925.00 mm
External turning radius with 24" tyres (with forks spaced 1040 mm ext.)
4925.00 mm
Carriage rotation angle
135.00 °
Performance
TL35.70 Construction Telehandler
Rated capacity
3500.00 kg
Capacity (at max. height on tyres)
3500.00 kg
Capacity at max. reach
1500.00 kg
Lifting height
6889.00 mm
Tilt Breakout force
6200.00 daN
Drawbar pull (20" tyres)
8000.00 daN
Drawbar pull (24" tyres)
7000.00 daN
Max. gradeability (20" tyres)
33.00 °
Max. gradeability (24" tyres)
33.00 °
Max. reach
4002.00 mm
Cycle times
TL35.70 Construction Telehandler
Boom raising
8.00 s
Boom lowering
6.00 s
Boom extension
7.10 s
Boom retraction
6.50 s
Crowding
3.00 s
Dumping
2.70 s
Weights
TL35.70 Construction Telehandler
Unladen weight (20" tyres)
6880.00 kg
Unladen weight (24" tyres)
7020.00 kg
Engine
TL35.70 Construction Telehandler
Make / Model
PERKINS / 1104D-44TA
Fuel
DIESEL
Rated power (ISO 14396)
74.00 kW
Rated speed
2200.00 RPM
Maximum torque at 1400 rpm
410.00 Nm
Number of cylinders
4.0
Displacement
4.40 L
Hydraulic system
TL35.70 Construction Telehandler
Pump type
Gear pump with LS valve
Pump capacity
100.00 L/min
Relief valve pressure setting
255.00 bar
Control valve type
Open center with flow sharing & flow compensators technology
Drive system
TL35.70 Construction Telehandler
Transmission
Hydrostatic with electronic regulation
Main Drive
Hydrostatic motor + 2 speed gearbox
Traction
TL35.70 Construction Telehandler
Standard Tyres
405/70-20 16PR TM R4
Low range - turtle mode (24" / 20")
6 / 5
Low range - rabbit mode (24" / 20")
11 / 10
High range - turtle mode (24" / 20")
16 / 14
High range - rabbit mode (24" / 20")
30 / 26
Low range - turtle mode (24" / 20") - (Option high speed)
6 / 5
Low range - rabbit mode (24" / 20") - (Option high speed)
12 / 10
High range - turtle mode (24" / 20") - (Option high speed)
18 / 16
High range - rabbit mode (24" / 20") - (Option high speed)
40 / 35
Brakes
TL35.70 Construction Telehandler
Engine Braking
Hydrostatic
Parking and Emergency brake
Passive brake
Service Brake
Oil immersed discs
Steering
TL35.70 Construction Telehandler
Steering Mode
2 wheel steering / 4 wheel steering / Crab-steering
Fluid Capacities
TL35.70 Construction Telehandler
Fuel tank
138.00 L
Hydraulic tank
59.00 L
Hydraulic system
105.00 L
Environmental
TL35.70 Construction Telehandler
Operator noise level (LpA) (EN 12053)
76.00 dB(A)
Whole body vibration (EN 13059)
1.50 ms2
TL35.70 Video Gallery
TL35.70 Features
Performance
1
Reach high and far
The superior stability and balance of our Telehandlers means that most jobs do not require stabilizers. We designed the machine with a low center of gravity, long wheelbase, heavy counterweight, and optimum weight distribution – so you can reach high and far while handling heavy loads with ease in any position. Bobcat Telehandlers are stable by nature!
Uptime Protection
2
3-Year standard warranty
Bobcat Company develops every machine to the highest
standards of quality and durability. That’s why our standard
warranty provides 36 months or 3000 operating hours
(whichever occurs first) of coverage, extendable up to 5 years or 6000 engine hours.
Shielded design
All vital components of your machine are located inside the
highly rigid boom and frame. The frame itself features a robust
box section. The machine’s cylinders, hydraulic systems and
electric harnesses stay well-protected at all times. A steel bottom plate fully protects against shocks coming from the ground.
Ease of use
8
Control at Any height
Bobcat telehandlers provide you with surgical-precision control at any height – thanks to the incredibly smooth transmission, our Boom Positioning System (if equipped), an ergonomic joystick, the inching function, and great visibility from the cab.
Intuitive operation
Bobcat makes it easy to simply start working – with a familiar automotive-style control layout, an interactive display, an all-in-one joystick with improved ergonomics, color-coded control elements, and automatic parking brake.
All-around visibility
Because it means safety and productivity, we made numerous efforts to give to the operator an excellent visibility.
Lateral visibility thanks to the low-profile engine hood, on the load thanks to the streamlined dashboard, and on top thanks to the optimized FOPS grid.
All-in-one & precise joystick
The joystick’s highly ergonomic handle was redesigned with operator feedback. The most important controls are located at your fingertips at all times: drive direction, turtle/rabbit modes, boom movements, auxiliary controls, and shift-on-the-fly settings. Smooth stiffness delivers very precise placements of the load!
Butter-smooth automatic transmission
The butter-smooth hydrostatic transmission provides your choice of precise movements or agility. Hydrostatic technology enables automatic drive, inching function for slow delicate approaches, and reduced machine inertia for safe operation on job sites.
Compactness and maneuverability
A big machine can mean big challenges. But with the emphasis on maneuverability, Bobcat Telehandlers thrive on constrained job sites.
First-class comfort
Enjoy the roomy cab with its great comfort features: easy cab access, suspended seat, 360 ergonomics (thanks to the central control panel), and many more. This first-class user experience is further enhanced by amazing visibility.
Interactive LCD display
A clear, easy-to-read overview of all operating parameters ... at the touch of a button. Available in 5-inch or 7-inch with touchscreen as an option, the highly intuitive menu enables navigation via jog shuttle. If equipped, the rear-view camera feed is shown automatically when reversing.
The optional 7" touchscreen display (compatible with gloves) contains a built-in Bluetooth radio, microphone, loudspeakers, phone page and Job Manager (memorization of up to 6 operator setting configurations).
Popular Attachments
View All- Bale Handler With Tines
Bale Handler With Tines
These handlers are designed to transport and load one or two round farm bales (diameters from 1.2 to 1.6 m). - Bale Handler With Tubes
Bale Handler With Tubes
These handlers enable you to transport one or two round, wrapped farm bales with diameters from 1 to 1.8 m. - Bale Spike
Bale Spike
The pair of small-diameter forks gives you advantages over a single spike. - Bucket, Digging
Bucket, Digging
The extremely durable Bobcat® digging bucket is ideal for all types of digging and materials handling jobs. - Bucket, Grapple
Bucket, Grapple
You can use this durable grapple to move hard-to-handle agricultural materials. - Fork Grapple
Fork Grapple
Built tough for reliability and endurance, the fork with grapple easily handle scrap, waste, brush and other hard to manage materials. - Jib, Crane
Jib, Crane
The use of hooks can increase your working scope considerably when you are placing suspended loads. - Pallet Fork, Floating
Pallet Fork, Floating
A versatile attachment perfect for lifting, carrying, stacking or placing pallet materials even on rough and uneven surfaces. - Sweeper
Sweeper
The Bobcat sweeper can sweep and collect dirt or other debris in both forward and reverse. - Sweeper, Multipurpose
Sweeper, Multipurpose
The Bobcat multipurpose sweeper can sweep and collect dirt or other debris.
Similar Machines
- T41.140SLP Construction Telehandler
T41.140SLP Construction Telehandler
No job is too challenging with the intuitive and performance-based Bobcat R-Series T41.140SLP Telehandler on your sideRated Capacity4100 kgLifting height13.7 mRated power (ISO 14396)74 kW - T40.180SLP Construction Telehandler
T40.180SLP Construction Telehandler
Enjoy the best of capability, manueverability, and productivity with the all-new Bobcat R-Series T40.180SLP Telehandler.Rated Capacity4000 kgLifting height17.5 mRated power (ISO 14396)74 kW - T36.120SL Construction Telehandler
T36.120SL Construction Telehandler
Rock out the stabalizers for the powerful 12-meter boom on the impressive Bobcat R-Series T36.120SL Telehandler.Rated Capacity3600 kgLifting height11.9 mRated power (ISO 14396)55 kW - T35.105L Construction Telehandler
T35.105L Construction Telehandler
If you're looking for a perfect balance of performanance and maneuverability, look no further than the Bobcat R-Series T35.105L.Rated Capacity3500 kgLifting height10.3 mRated power (ISO 14396)74 kW - TL35.70 Construction Telehandler
TL35.70 Construction Telehandler
The Bobcat R-Series TL35.70 uses a new shielded design to ensure that this Telehandler remains extra tough for years to come.Rated Capacity3500 kgLifting height6.9 mRated power (ISO 14396)74 kW - TL30.60 Construction Telehandler
TL30.60 Construction Telehandler
The Bobcat R-Series TL30.60 Telehandler was made to take on tight spots with surgical precision with an all-in-one joystick.Rated Capacity3000 kgLifting height5.8 mRated power (ISO 14396)74 kW - TL30.70 Construction Telehandler
TL30.70 Construction Telehandler
Get even more from your construction site thanks to the intuitive and maneuverable Bobcat R-Series TL30.70 Telehandler.Rated Capacity3000 kgLifting height6.7 mRated power (ISO 14396)74 kW
Related Content
View All- Bobcat Celebrates 60 years of Pontchâteau, France Factory
Bobcat Celebrates 60 years of Pontchâteau, France Factory
6 September 2023
Bobcat’s factory in Pontchâteau in France traces its history back to the early 20th century when Joseph Sambron transformed his school bench factory into a hub for farm machinery and bicycles. - Bobcat Telehandlers Play Key Role at the Colours of Ostrava Music Festival
Bobcat Telehandlers Play Key Role at the Colours of Ostrava Music Festival
8 December 2022
For many years, Bobcat telehandlers have been gaining popularity in fields such as construction, agriculture, waste management and elsewhere. - Bobcat Launches New Generation of Telehandlers
Bobcat Launches New Generation of Telehandlers
26 May 2021
Bobcat is launching the company's new generation R-Series telehandler range for the Middle East, Africa, Russia and CIS markets, providing a choice of 12 models powered by Stage IIIA engines. - Dubai Customer Praises Bobcat Telehandler Reliability
Dubai Customer Praises Bobcat Telehandler Reliability
13 July 2018
A leading Bobcat telehandler customer in Dubai in the United Arab Emirates (UAE), has praised the high performance, reliability and durability of the Bobcat telehandler range.
