TL43.80HF Agricultural Telehandler

TL43.80HF Agricultural Telehandler

The Bobcat R-Series TL43.80HF Telehandler is the natural step up from smaller machines, the beast of the range! Operators in agriculture love the best-in-class boom speeds and High Flow. It features a premium workspace with a large and roomy cab with a patented design featuring high visibility to aid efficient and safe work.

TL43.80HF Overview

TL43.80HF components are well protected thanks to the shielded design. Its smart functions allow you to maximize productivity, while the stable design means the machine hugs the ground for extra stability and peace of mind. Available in four AGRI finishing levels. If you want to add a specific functionality, choose from a list of comprehensive options, and customize your telescopic loader to your heart’s content! The machine comes with a 3-year manufacturer warranty as a standard for extra peace of mind.

This model is also available in a Waste Expert package. Click here to find out more.

TL43.80HF Specifications

Compare

Key Specifications

Rated Capacity
4300 kg
Lifting height
7.5 m
Rated power (ISO 14396)
101 kW
Tilt breakout force
7000 daN
Unladen weight
7985 kg

Key Specifications

Rated Capacity
4300 kg
Lifting height
7.5 m
Rated power (ISO 14396)
101 kW
Tilt breakout force
7000 daN
Unladen weight
7985 kg

Dimensions

Overall length (to forks tip)
6180.00 mm
Overall length (to forks face)
4975.00 mm
Overall length (to headstock pin)
4585.00 mm
Overall length (to front tyres 24" / Stabilizers (when equipped)
4256.00 mm
Overall height with 24" tyres (with rotating beacon)
2587.00 mm
Overall height with 24" tyres (with roof wiper)
2457.00 mm
Height back of the machine with 24" tyres
1770.00 mm
Ground clearance
346.00 mm
Ground clearance with 24" tyres
430.00 mm
Length - Front axle to forks face
1352.00 mm
Wheelbase
2870.00 mm
Length - Rear axle to machine rear
754.00 mm
Operator cab outside width
1013.00 mm
Track width
1895.00 mm
Width over standard tyres
2300.00 mm
External turning radius with 24" tyres (at tyres)
3714.00 mm
Internal turning radius with 24" tyres (cab)
1092.00 mm
External turning radius with 24" tyres (with forks spaced 1040 mm ext.)
4883.00 mm
Carriage rotation angle
152.00 °

Performance

Rated capacity
4300.00 kg
Capacity (at max. height on tyres)
1800.00 kg
Capacity at max. reach
1600.00 kg
Lifting height
7505.00 mm
Tilt Breakout force
7000.00 daN
Drawbar pull (24" tyres)
7200.00 daN
Max. gradeability (24" tyres)
33.00 °
Max. reach
4022.00 mm

Cycle times

Boom raising
6.50 s
Boom lowering
5.00 s
Boom extension
5.00 s
Boom retraction
4.50 s
Crowding
2.30 s
Dumping
2.00 s

Weights

Unladen weight (24" tyres)
7985.00 kg

Engine

Make / Model
Bobcat D34
Fuel
DIESEL
Rated power (ISO 14396)
101.00 kW
Rated speed
2400.00 RPM
Maximum torque at 1400 rpm
500.00 Nm
Number of cylinders
4.0
Displacement
3.41 L

Hydraulic system

Pump type
LS piston pump with electric displacement limiter
Pump capacity
190.00 L/min
Relief valve pressure setting
255.00 bar
Control valve type
Close center with flow sharing & flow compensators technology

Drive system

Transmission
Hydrostatic with electronic regulation
Main Drive
Hydrostatic motor + 2 speed gearbox

Traction

Standard Tyres
400/80-24 / 20PR TM R4
Low range - turtle mode (24" / 20")
6
Low range - rabbit mode (24" / 20")
11
High range - turtle mode (24" / 20")
16
High range - rabbit mode (24" / 20")
30
Low range - turtle mode (24" / 20") - (Option high speed)
6
Low range - rabbit mode (24" / 20") - (Option high speed)
12
High range - turtle mode (24" / 20") - (Option high speed)
18
High range - rabbit mode (24" / 20") - (Option high speed)
40

Brakes

Engine Braking
Hydrostatic
Parking and Emergency brake
Passive brake
Service Brake
Oil immersed discs

Steering

Steering Mode
2 wheel steering / 4 wheel steering / Crab-steering

Fluid Capacities

Fuel tank
138.00 L
Adblue ® tank
28.80 L
Hydraulic tank
59.00 L
Hydraulic system
126.00 L

Environmental

Operator noise level (LpA) (EN 12053)
73.00 dB(A)
Sound pressure level at the operator station 2014 /1322 Annexe XIII - 40kmh : doors closed (doors opened) (LpA)
73 dB(A)
Level of acoustic power (LwA)
107.00 dB(A)
Whole body vibration (EN 13059)
1.20 ms2

TL43.80HF Video Gallery

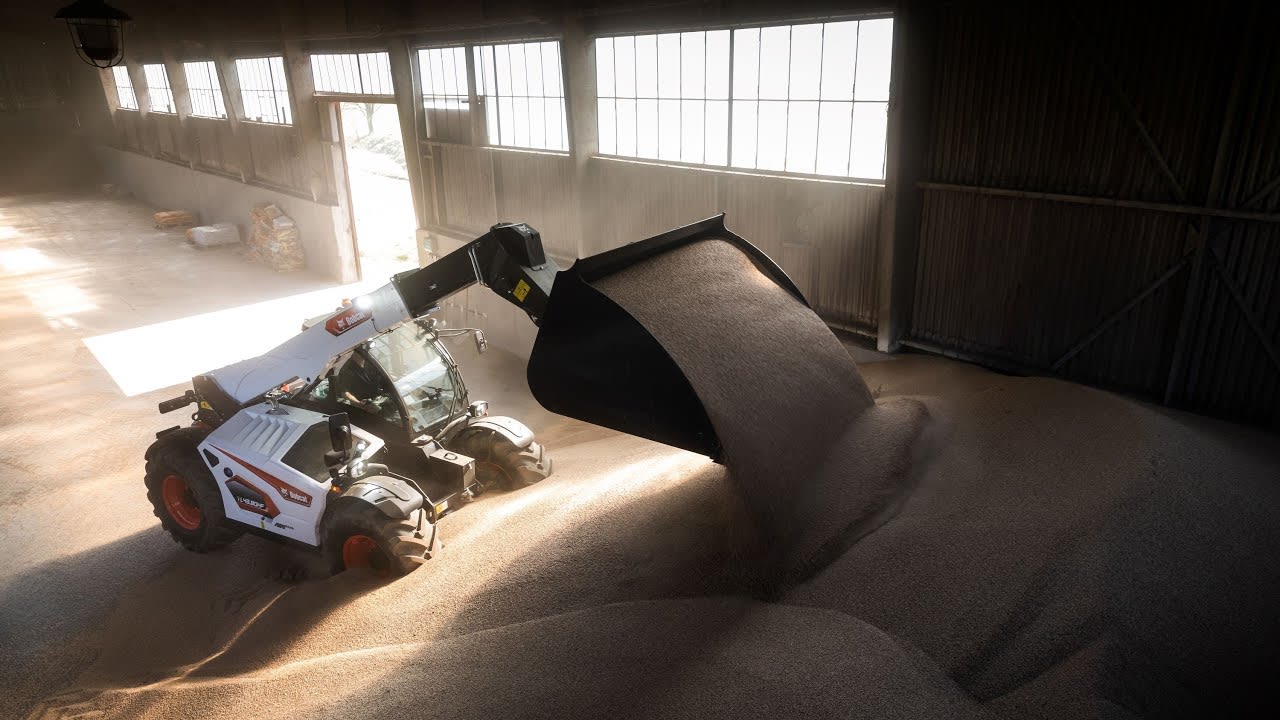

Introducing the All-New R-Series Telehandlers for Agriculture

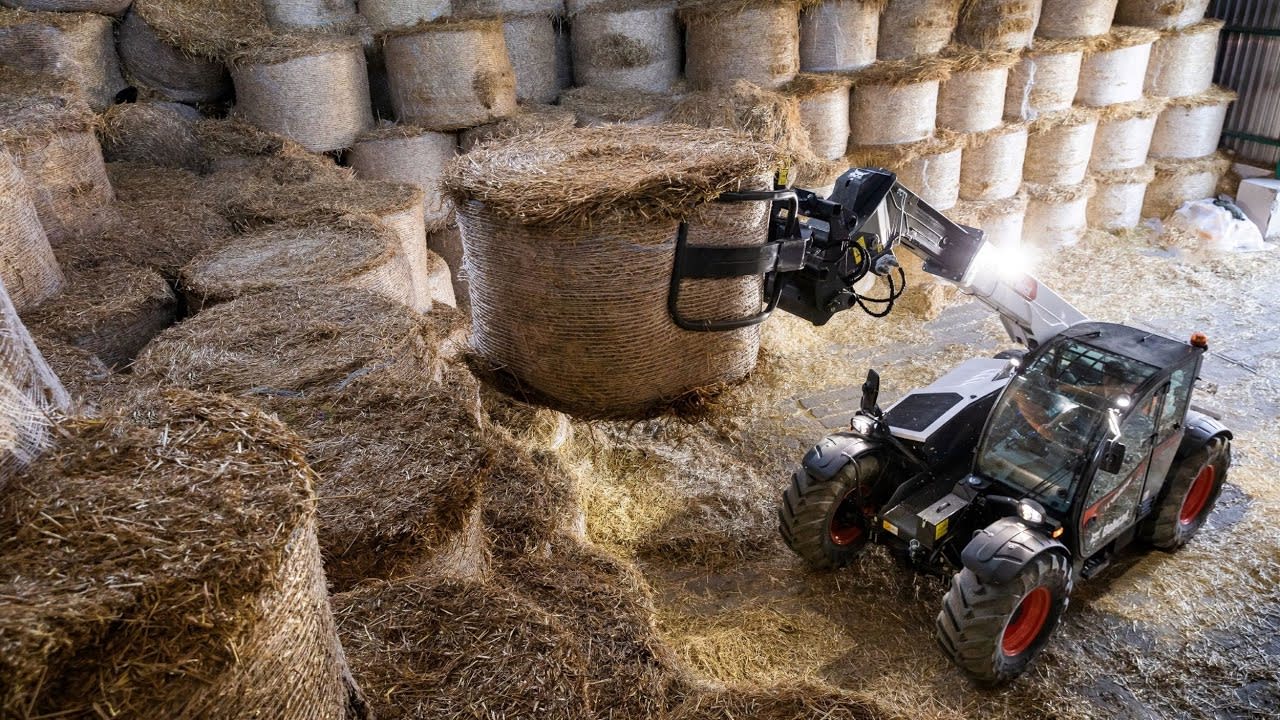

See the New R-Series Telehandlers for Agriculture in Action

TL43.80HF Features

Popular Attachments

View All
  • Bale Handler With Tines Bale Handler with Tines

    Bale Handler With Tines

    These handlers are designed to transport and load one or two round farm bales (diameters from 1.2 to 1.6 m).
  • Bale Handler With Tubes Bale Handler with Tubes

    Bale Handler With Tubes

    These handlers enable you to transport one or two round, wrapped farm bales with diameters from 1 to 1.8 m.
  • Bale Spike Bale Spike

    Bale Spike

    The pair of small-diameter forks gives you advantages over a single spike.
  • Bucket, Digging Bucket, Digging

    Bucket, Digging

    The extremely durable Bobcat® digging bucket is ideal for all types of digging and materials handling jobs.
  • Bucket, Grapple Bucket, Grapple

    Bucket, Grapple

    You can use this durable grapple to move hard-to-handle agricultural materials.
  • Bucket, Light Material Bucket, Light Material

    Bucket, Light Material

    The large volume of Bobcat Light Material Buckets is designed for loading and handling a variety of light materials such as mulch, snow and grain.
  • Fork Grapple Fork Grapple

    Fork Grapple

    Built tough for reliability and endurance, the fork with grapple easily handle scrap, waste, brush and other hard to manage materials.
  • Jib, Crane Jib, Crane

    Jib, Crane

    Add a crane jib and your telehandler is turned into a crane, but with all the advantages of its mobility and versatility.
  • Pallet Fork, Floating Pallet Fork, Floating

    Pallet Fork, Floating

    Use this versatile attachment to lift, carry, stack or place all types of pallet materials even on rough and uneven surfaces in construction sites,
  • Pallet Fork, Rigid Pallet Fork, Rigid

    Pallet Fork, Rigid

    This versatile attachment isn’t just for picking up and placing large pallets of construction materials.
  • Sweeper Sweeper

    Sweeper

    The Bobcat sweeper can sweep and collect dirt or other debris in both forward and reverse.
  • Sweeper, Multipurpose Sweeper, Multipurpose

    Sweeper, Multipurpose

    The Bobcat multipurpose sweeper can sweep and collect dirt or other debris.
