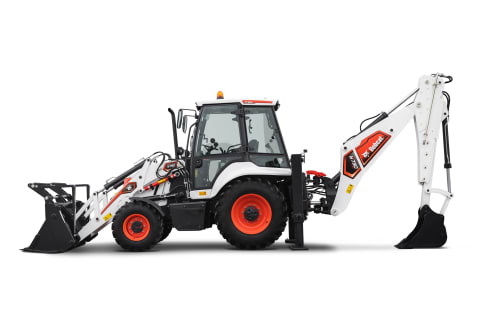

B730 Backhoe Loader
B730 Backhoe Loader
The B730 R-Series is your complete solution for any job site, with an unbeatable combination of power, comfort, operator-friendly controls, robust build, efficient operation and easy maintenance.
B730 Specifications
Compare
Key Specifications
B730 Backhoe Loader
Loader bucket capacity
1.1 m3
Digging depth
4.6 m
Engine power
74.5 kW
Steering type
2WS
Operating weight
7800 kg
Engine
B730 Backhoe Loader
Make / Model
Perkins / 1104C-44T
Compliancy
EU Stage II and EPA Tier 2
Aspiration
Turbocharged
Number of cylinders
4.0
Displacement
4.40 L
Rated gross power (ISO 14396)
100.00 HP
Rated speed
2200.00 RPM
Maximum torque @1350 RPM
408.00 Nm
Fuel
Diesel
Cooling
Water
Reference Value
69.5kW
Electrical System
B730 Backhoe Loader
Battery
12 V 120 Ah
Starter
3.20 kW
Transmission
B730 Backhoe Loader
Make / Model
CARRARO
Type
Synchroshuttle
Max travel speed 1st forward/reverse
5.93/5.93 km/h
Max travel speed 2nd forward/reverse
9.47/9.47 km/h
Max travel speed 3rd forward/reverse
21.13/21.13 km/h
Max travel speed 4th forward/reverse
41.49/41.49 km/h
Type (Optional)
Autoshift
Front Axle
B730 Backhoe Loader
Type
4WD
Oscillation
16.00 °
Rear Axle
B730 Backhoe Loader
Make
CARRARO
Differential lock
Standard
Hydraulic System
B730 Backhoe Loader
System type
Open centre
Pump
Tandem gear pump
Flow
90.0 + 64.0 L/min
System pressure
220.00 bar
Controls, backhoe
Mechanical levers
Controls, loader
Mechanical lever
Steering
B730 Backhoe Loader
Type
2WS
Turning circle (unbraked), outside front tyres
9900.00 mm
Turning circle (unbraked), outside loader bucket
12320.00 mm
Dimensions
B730 Backhoe Loader
Overall length in travel position
6100.00 mm
Wheelbase
2170.00 mm
Backhoe swing center distance
1300.00 mm
Stabilizers ground clearance
380.00 mm
Height to cab
2910.00 mm
Overall transport height
3840.00 mm
Machine width
2280.00 mm
Overall width (bucket)
2280.00 mm
Rear wheel track
1770.00 mm
Font wheel track
1895.00 mm
Working range
B730 Backhoe Loader
Max. digging depth (retracted/extended)
4600/5800 mm
Max. reach from rear axle center (retracted/extended)
7000/8100 mm
Max. reach from swing center (retracted/extended)
5700/6800 mm
Max. digging height (retracted/extended)
5600/6450 mm
Max. dump height (retracted/extended)
3850/4700 mm
Loading reach (retracted/extended)
1800/2650 mm
Bucket rotation angle (retracted/extended)
200.4/200.4 °
Max. bucket hinge pin height (retracted/extended)
4750/5550 mm
Distance between hinge pin and front axle center
1206.00 mm
Max. rollback angle, fully raised
59.20 °
Dump height
2810.00 mm
Load over height
3280.00 mm
Height to hinge pin
3520.00 mm
Max. reach at full height
1070.00 mm
Dumping reach
620.00 mm
Digging depth
115.00 mm
Dump angle
45.00 °
Loader Performance
B730 Backhoe Loader
Bucket capacity, GP
1.10 m3
Breakout force, bucket
61.20 kN
Breakout force, arm
57.90 kN
Rated operating capacity at max height
3094.00 kg
Brakes
B730 Backhoe Loader
Service type
Boosted, hydraulic wet multi disc, dual pedal braking
Parking type
Mechanical control on rear axle
Backhoe Performance
B730 Backhoe Loader
Bucket capacity
0.20 m3
Bucket tearout
59.30 kN
Dipper tearout retracted
28.60 kN
Operating Weights
B730 Backhoe Loader
Base machine
7800.00 kg
Tyres
B730 Backhoe Loader
4WD front
12.5-18
Rear
16.9-28
Standard Features
B730 Backhoe Loader
ROPS/FOPS Enclosed cab with fan
yes
Mechanical suspension seat with seat belt
yes
Sunvisor
yes
Floormat
yes
Tilted steering column
yes
Steering wheel knob
yes
Front and rear windscreen and wiper
yes
8 work lights (4 front, 4 rear)
yes
Side storage
yes
Exterior and interior mirrors
yes
Radio ready wiring
yes
Rotating beacon
yes
Horn
yes
12V Aux
yes
Reverse alarm
yes
Front headlights
yes
Fully equipped dashboards
yes
USB Charger
yes
Backhoe bucket 600 mm
yes
Loader bucket, general purpose
yes
Tail light guard
yes
Options
B730 Backhoe Loader
Air Conditioning
yes
Autoshift Transmission
yes
Heater
yes
Mudguard
yes
Pilot Controls with Pattern Selector
yes
Ride control
yes
4WD Shaft Guard
yes
Optional Attachments
B730 Backhoe Loader
Backhoe Buckets, different sizes
yes
Extendable Boom
yes
Hammer piping
yes
Hydraulic Hammer
yes
Loader Bucket 6 in 1
yes
Pallet Forks
yes
B780 Backhoe Loader
Compare
B730 M-Series Backhoe Loader
Compare
Key Specifications
B730 Backhoe Loader
Loader bucket capacity
1.1 m3
Digging depth
4.6 m
Engine power
74.5 kW
Steering type
2WS
Operating weight
7800 kg
Engine
B730 Backhoe Loader
Make / Model
Perkins / 1104C-44T
Compliancy
EU Stage II and EPA Tier 2
Aspiration
Turbocharged
Number of cylinders
4.0
Displacement
4.40 L
Rated gross power (ISO 14396)
100.00 HP
Rated speed
2200.00 RPM
Maximum torque @1350 RPM
408.00 Nm
Fuel
Diesel
Cooling
Water
Reference Value
69.5kW
Electrical System
B730 Backhoe Loader
Battery
12 V 120 Ah
Starter
3.20 kW
Transmission
B730 Backhoe Loader
Make / Model
CARRARO
Type
Synchroshuttle
Max travel speed 1st forward/reverse
5.93/5.93 km/h
Max travel speed 2nd forward/reverse
9.47/9.47 km/h
Max travel speed 3rd forward/reverse
21.13/21.13 km/h
Max travel speed 4th forward/reverse
41.49/41.49 km/h
Type (Optional)
Autoshift
Front Axle
B730 Backhoe Loader
Type
4WD
Oscillation
16.00 °
Rear Axle
B730 Backhoe Loader
Make
CARRARO
Differential lock
Standard
Hydraulic System
B730 Backhoe Loader
System type
Open centre
Pump
Tandem gear pump
Flow
90.0 + 64.0 L/min
System pressure
220.00 bar
Controls, backhoe
Mechanical levers
Controls, loader
Mechanical lever
Steering
B730 Backhoe Loader
Type
2WS
Turning circle (unbraked), outside front tyres
9900.00 mm
Turning circle (unbraked), outside loader bucket
12320.00 mm
Dimensions
B730 Backhoe Loader
Overall length in travel position
6100.00 mm
Wheelbase
2170.00 mm
Backhoe swing center distance
1300.00 mm
Stabilizers ground clearance
380.00 mm
Height to cab
2910.00 mm
Overall transport height
3840.00 mm
Machine width
2280.00 mm
Overall width (bucket)
2280.00 mm
Rear wheel track
1770.00 mm
Font wheel track
1895.00 mm
Working range
B730 Backhoe Loader
Max. digging depth (retracted/extended)
4600/5800 mm
Max. reach from rear axle center (retracted/extended)
7000/8100 mm
Max. reach from swing center (retracted/extended)
5700/6800 mm
Max. digging height (retracted/extended)
5600/6450 mm
Max. dump height (retracted/extended)
3850/4700 mm
Loading reach (retracted/extended)
1800/2650 mm
Bucket rotation angle (retracted/extended)
200.4/200.4 °
Max. bucket hinge pin height (retracted/extended)
4750/5550 mm
Distance between hinge pin and front axle center
1206.00 mm
Max. rollback angle, fully raised
59.20 °
Dump height
2810.00 mm
Load over height
3280.00 mm
Height to hinge pin
3520.00 mm
Max. reach at full height
1070.00 mm
Dumping reach
620.00 mm
Digging depth
115.00 mm
Dump angle
45.00 °
Loader Performance
B730 Backhoe Loader
Bucket capacity, GP
1.10 m3
Breakout force, bucket
61.20 kN
Breakout force, arm
57.90 kN
Rated operating capacity at max height
3094.00 kg
Brakes
B730 Backhoe Loader
Service type
Boosted, hydraulic wet multi disc, dual pedal braking
Parking type
Mechanical control on rear axle
Backhoe Performance
B730 Backhoe Loader
Bucket capacity
0.20 m3
Bucket tearout
59.30 kN
Dipper tearout retracted
28.60 kN
Operating Weights
B730 Backhoe Loader
Base machine
7800.00 kg
Tyres
B730 Backhoe Loader
4WD front
12.5-18
Rear
16.9-28
Standard Features
B730 Backhoe Loader
ROPS/FOPS Enclosed cab with fan
yes
Mechanical suspension seat with seat belt
yes
Sunvisor
yes
Floormat
yes
Tilted steering column
yes
Steering wheel knob
yes
Front and rear windscreen and wiper
yes
8 work lights (4 front, 4 rear)
yes
Side storage
yes
Exterior and interior mirrors
yes
Radio ready wiring
yes
Rotating beacon
yes
Horn
yes
12V Aux
yes
Reverse alarm
yes
Front headlights
yes
Fully equipped dashboards
yes
USB Charger
yes
Backhoe bucket 600 mm
yes
Loader bucket, general purpose
yes
Tail light guard
yes
Options
B730 Backhoe Loader
Air Conditioning
yes
Autoshift Transmission
yes
Heater
yes
Mudguard
yes
Pilot Controls with Pattern Selector
yes
Ride control
yes
4WD Shaft Guard
yes
Optional Attachments
B730 Backhoe Loader
Backhoe Buckets, different sizes
yes
Extendable Boom
yes
Hammer piping
yes
Hydraulic Hammer
yes
Loader Bucket 6 in 1
yes
Pallet Forks
yes
B730 Features
Features
6
Integrated controls
Operate the entire machine and stay productive while keeping your hand on the joystick. The combo bucket controls, differential lock and transmission disengage are always at your fingertips.
Smart assistance
Leave routine jobs to the B730 R-Series’s smart assistance functionality. Experienced and novice operators alike will love the Return-to-Dig and Float features provided as standard.
Reach wide and far
With a long, best-in-class reach and surprisingly wide working area, the B730 R-Series has to be repositioned less often during operation, significantly increasing your productivity.
Unmatched visibility
The new cab ensures full visibility of the job site while driving, working or operating the backhoe. Stay aware of your surroundings at all times.
Easy-to-use controls
The B730 R-Series’s simple, ergonomic controls, including optional pilot controls and an optional auto-shift transmission, keep you working longer with less fatigue and strain.
Built to last
The B730 R-Series is so tough it can take on any job. With its cast heavy-duty grill, side shift frame and king post, this robust machine is ready for the harshest environments.
