E37 Mini Excavator

The new Bobcat® E37 model is a new generation of Bobcat conventional tail swing model offering higher stability coupled with excellent performance and further enhanced controllability. It features a new roomy premium cab with optional powerful air conditioning to ensure an ideal operator environment in all weather conditions. When transportability on a trailer and zero house swing are not needed, this machine offers a great mix of performance, stability and operator comfort.

Request a Quote

E37 Specifications

Compare

Key Specifications

Operating weight

3738 kg

Digging depth

3.1 m

Engine power

24.4 kW

Digging breakout force

20790 N

Tail swing type

CTS

Weights

Working Range

Dimensions

Engine

Hydraulic System

Performance

Slew System

Fluid Capacities

Environmental

Standard Features

Options

Key Specifications

Operating weight

3738 kg

Digging depth

3.1 m

Engine power

24.4 kW

Digging breakout force

20790 N

Tail swing type

CTS

Weights

Operating weight with canopy, long arm, steel tracks and bucket (ISO 6016)

3738.00 kg

Additional weight for cab with heating

118.00 kg

Additional weight for cab with HVAC

137.00 kg

Weight reduction with rubber tracks

-94.00 kg

Weight reduction with standard arm

-12.00 kg

Ground pressure with rubber tracks

33.60 kPa

Working Range

Bucket pivot angle

185.00 °

Maximum reach of working equipment

5101.00 mm

Maximum reach of working equipment, long dipperstick

5383.00 mm

Maximum reach at ground level

4980.00 mm

Maximum reach at ground level, long dipperstick

5270.00 mm

Maximum working equipment radius with boom at maximum height and dipperstick fully retracted

2017.00 mm

Maximum working equipment radius with boom at maximum height and dipperstick fully retracted, long dipperstick

2077.00 mm

Maximum blade height

382.00 mm

Maximum blade depth

456.00 mm

Maximum height of working equipment with dipperstick retracted

3708.00 mm

Maximum bucket tooth height

4804.00 mm

Maximum bucket tooth height, long dipperstick

4985.00 mm

Maximum dump height

3340.00 mm

Maximum dump height, long dipperstick

3521.00 mm

Maximum depth of vertical wall which can be excavated

2136.00 mm

Maximum depth of vertical wall which can be excavated, long dipperstick

2414.00 mm

Maximum digging depth

3117.00 mm

Maximum digging depth, long dipperstick

3417.00 mm

Dimensions

Blade height

322.00 mm

Clearance, upper structure to ground line

540.00 mm

Ground line to top of engine cover

1557.00 mm

Length of track on ground

1542.00 mm

Machine centre line to blade

1528.00 mm

Minimum radius in travel position

3787.00 mm

Overall length of track assembly

1970.00 mm

Overall length in travel position

4661.00 mm

Overall length in travel position, long dipperstick

4761.00 mm

Track lug height

25.00 mm

Blade width

1550.00 mm

Height

2468.00 mm

Track width

300.00 mm

Machine centre line to working equipment centre line, left-hand rotation

371.00 mm

Machine centre line to working equipment centre line, right-hand rotation

554.00 mm

Minimum turning radius

1623.00 mm

Swing clearance, rear

1125.00 mm

Swing clearance, rear (zero tail swing), long dipperstick

1215.00 mm

Working width at maximum right-hand rotation

1982.00 mm

Working width at maximum left-hand rotation

1855.00 mm

Engine

Make / model

Kubota / D1803-E3B (Interim Tier 4)

Fuel

Diesel

Number of cylinders

3

Displacement

1862.00 cm3

Maximum power @ 2200 rpm (ISO 14396)

24.40 kW

Maximum torque (SAE)

97.40 Nm

Hydraulic System

Pump type

Single outlet variable displacement, load sensing torque pump with gear pumps

Total hydraulic capacity

101.20 L/min

Auxiliary (AUX1) flow

64.00 L/min

Auxiliary (AUX2) flow

20.00 L/min

Auxiliary (AUX1) relief

206.00 bar

Auxiliary (AUX2) relief

179.00 bar

Performance

Digging force, dipperstick (ISO 6015)

20790.00 N

Digging force, long dipperstick (ISO 6015)

18010.00 N

Digging force, bucket (ISO 6015)

33430.00 N

Drawbar pull

34132.00 N

Travel speed, low range

2.60 km/h

Travel speed, high range

4.70 km/h

Slew System

Boom swing, left

75.00 °

Boom swing, right

55.00 °

Slew rate

8.60 RPM

Fluid Capacities

Fuel reservoir

52.00 L

Hydraulic reservoir

8.30 L

Environmental

Noise level LpA(EU Directive 2006/42/EC)

80.00 dB(A)

Noise level LWA(EU Directive 2000/14/EC)

94.00 dB(A)

Whole body vibration (ISO 2631–1)

1.20 ms2

Hand-arm vibration (ISO 5349–1)

0.85 ms2

Standard Features

1550 mm dozer blade

yes

300 mm rubber tracks

yes

Adjustable double acting auxiliary hydraulic (AUX1) with Quick Couplers

yes

Battery disconnect switch

yes

Blade float feature

yes

Clamp ready

yes

Control console locks

yes

Cupholder

yes

Dual Direction Detent

yes

Engine/hydraulic monitor with shutdown

yes

Foldable and ergonomic pedals

yes

Full fuel warning alarm

yes

Heavy counterweight

yes

Horn

yes

Hydraulic joystick controls

yes

Proportional fingertip auxiliary and boom swing offset hydraulic control

yes

Retractable seat belt

yes

Seat with high back

yes

Storage compartment

yes

TOPS/ROPS/FOPS canopy *

yes

Two-speed travel with Auto shift

yes

Upper structure four-point tie down

yes

Water separator

yes

Work light (boom)

yes

Warranty: 24 months, 2000 hours (whichever occurs first)

yes

Options

TOPS/ROPS/FOPS cab

yes

Long dipperstick

yes

Steel tracks

yes

AUX1 direct return to tank

yes

AUX2 hydraulics

yes

AUX1/AUX2 on arm

yes

Hydr. coupler lines (AUX5)

yes

Auto idle

yes

Keyless ignition

yes

Travel motion alarm

yes

AM/FM MP3 radio

yes

Additional halogen lights

yes

Beacon

yes

Dlx textile suspension seat

yes

Special application kit

yes

L/R mirrors

yes

Object handling device

yes

Klac D and X-change coupler

yes

Bobcat hydr. pin grabber

yes

E37 Features

Performance

8

More Predictable

Arm Configurations

Fingertip Boom Swing and Auxiliary Control

Two-Speed Travel

Dual Direction Detent

Blade Float

Auto Shift

Conventional Tail Swing

Comfort

5

Serviceability

1

Uptime Protection

9

X-Frame Undercarriage

Easy to clean Cooling Cores

Simple Machine Tie-Down

Machine Protection

Keyless Start

Engine Monitoring

Fuel Fill Alert

Integrated Slew Brakes

Segmented or Steel Tracks

Attachment Versatility

3

Popular Attachments

View All

Auger

Auger

Speed and perfect vertical accuracy are what you get with this high-torque, heavy-duty hydraulic auger.
Breaker

Breaker

Bobcat breakers offer high performance, low maintenance, and are easy to use.
Bucket, Clay Spade

Bucket, Clay Spade

Ideal for precision digging when installing or repairing pipes.
Bucket, Digging, Heavy Duty

Bucket, Digging, Heavy Duty

Tackle the toughest digging and material handling jobs with our robust digging buckets.
Bucket, Digging, Standard Duty

Bucket, Digging, Standard Duty

Tackle the toughest digging and material handling jobs with our robust digging buckets.
Bucket, Digging, UK Type

Bucket, Digging, UK Type

Tackle the toughest digging and material handling jobs with our robust digging buckets.
Bucket, German Profile

Bucket, German Profile

Tackle the toughest digging and material handling jobs with our robust digging buckets.
Bucket, Grading

Bucket, Grading

Increase profitability by removing ditch sediment quickly and easily.
Bucket, Grading, German Type

Bucket, Grading, German Type

Increase profitability by removing ditch sediment quickly and easily.
Bucket, Grading, UK Style

Bucket, Grading, UK Style

Increase profitability by removing ditch sediment quickly and easily.
Bucket, Skeleton

Bucket, Skeleton

Allows sand, dry fine dirt and water to drain while picking up solid bulky material like rocks, stones, roots, and debris.
Bucket, Tilt

Bucket, Tilt

Saves time and improves productivity.
Coupler, Hydraulic

Coupler, Hydraulic

Hydraulically connected to the machine, allowing you to change attachments rapidly from the comfort and security of your cab.
Coupler, Hydraulic Tilt

Coupler, Hydraulic Tilt

The Bobcat Hydraulic Tilt Coupler allows you to change attachments hydraulically, rapidly and from the comfort and security of your cab.
Coupler, Mechanical

Coupler, Mechanical

These manual couplers let you change attachments quickly, easily and safely.
Coupler, Mechanical Tilt

Coupler, Mechanical Tilt

The Bobcat Mechanical Tilt Coupler allows you to change attachments mechanically and rapidly.
Flail Mower, Heavy Duty

Flail Mower, Heavy Duty

Attack your most difficult brush and sapling clearing projects with the Bobcat® Flail Mower.
Flail Mower, Self-levelling

Flail Mower, Self-levelling

Shred vegetation on any terrain, inluding roadways or ditches, or clear out shrub and long grass from forgotten areas.
Grade Lasers

Grade Lasers

Bobcat's Grade Laser is a highly precise and dependable system for leveling, grading or jobs that require vertical alignment.
Laser Equipment

Laser Equipment

The laser equipment offers the most innovative features to help you get to grade faster with increased accuracy.
Rotary Grinder

Rotary Grinder

The rotary grinder is a powerful attachment that consists of a double drum, driven by a completely integrated high-torque hydraulic motor.

View All

Similar Machines

E08 Mini Excavator

E08 Mini Excavator

Don't get stuck with exhausting manual labor, check out the Bobcat E08 compact excavator for the smallest of job sites.

Operating weight

1138 kg
Digging depth

1.8 m
Engine power

7.5 kW

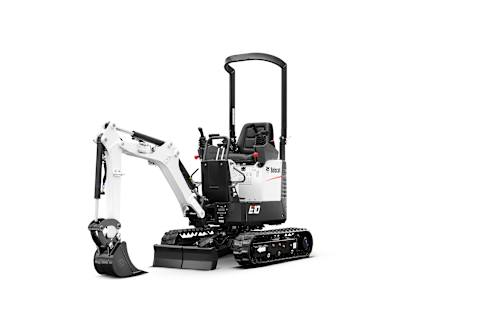

E10z Mini Excavator
